EMT Dimensions & Fill

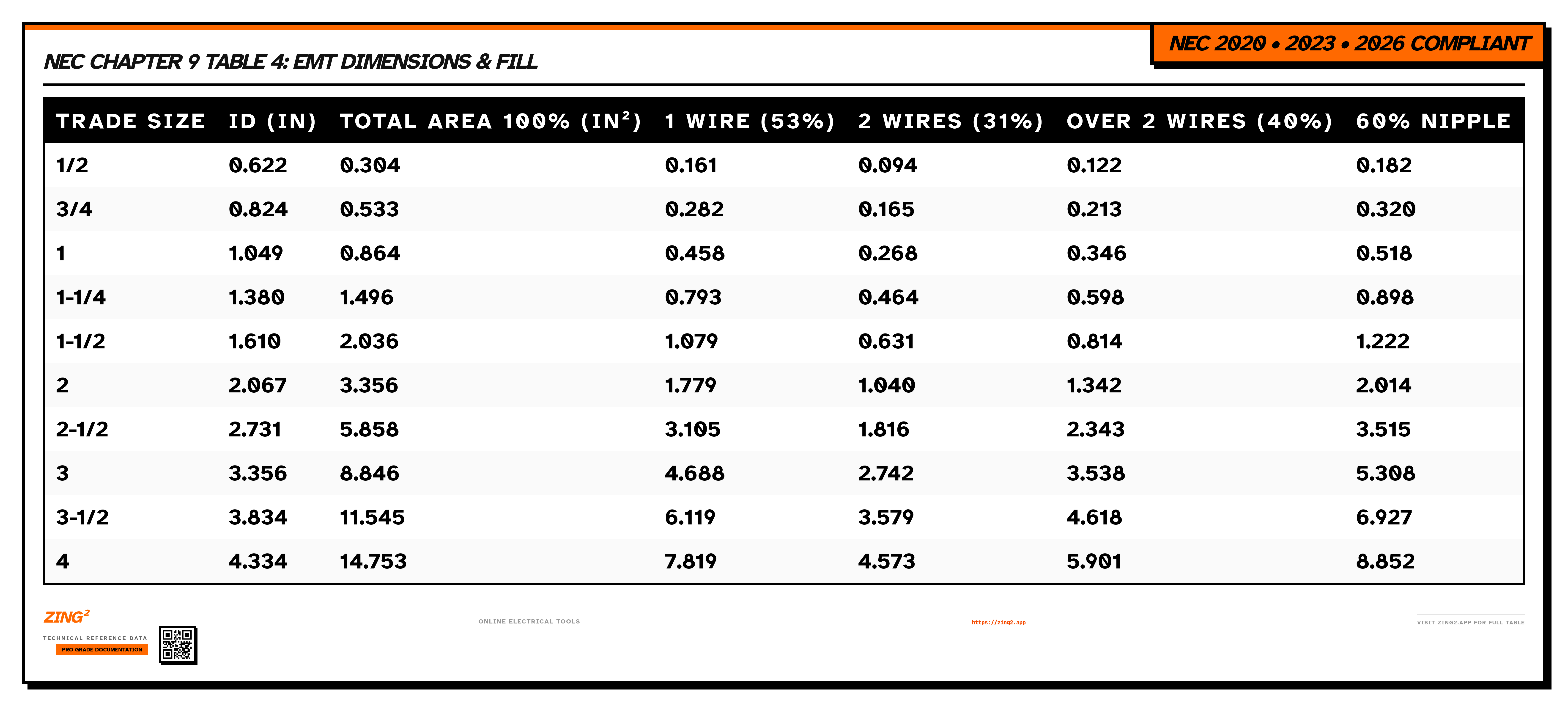

Internal area and 40% fill capacity for Electrical Metallic Tubing (EMT).
Professional Usage Disclaimer
This data is provided for informational purposes only. Always verify with the latest edition of the National Electrical Code (NFPA 70) and consult with a licensed electrical professional or AHJ (Authority Having Jurisdiction) before performing any electrical work. Zing² is a reference tool, not a substitute for qualified engineering.
Professional Field Notes & Gotchas
- ▸The 40% Fill Rule: You cannot jam a conduit full. The 40% limit for 'Over 2 Wires' is designed to allow air flow for heat dissipation and to prevent wire damage during pulling.
- ▸Nipple Exception: If the conduit length (nipple) is 24 inches or less, you can fill it up to 60% of its cross-sectional area per Note 4 to Chapter 9 Tables.
- ▸Jam Ratio: When pulling three conductors into a conduit, be wary of the 'Jam Ratio.' If the ratio of the conduit ID to the conductor OD is near 2.8 to 3.2, the wires can wedge and stick.
- ▸Pulling Tension: For long runs with multiple bends, keeping your fill well below 40% (around 25-30%) significantly reduces pulling tension and risk of insulation failure.
NEC 2023 vs 2026: What changed?
NEC 2023 vs 2026: No changes to the primary Area (in²) or ID (in) values for EMT. The 2026 code added Informational Notes regarding the use of lubricants specifically manufactured for pull-tension reduction in high-fill scenarios.
Technical FAQs
How many THHN wires in 3/4 inch EMT?
For common #12 THHN wires, a 3/4" EMT can hold up to 16 conductors at 40% fill. For #10 THHN, it can hold 10 conductors.
Can I use the 60% fill rule for a 3-foot pipe?
No. The 60% fill allowance only applies to raceways that do not exceed 24 inches in total length between boxes, cabinets, or similar enclosures.
Does the ground wire count toward conduit fill?
Yes. Every wire pulling through the conduit, including grounding and bonding conductors, must be included in the total cross-sectional area calculation.
